SW - Custom-made control
Description: Booster sets equipped with single or multistage Pumps with frequency converters built into the control cabinet for each pump. The entire system is managed by an S7 1200 microprocessor controller from Siemens.
Possibility of using pumps from manufacturers such as: Grundfos, Lowara, KSB, and Ebara.
Construction
- The set typically consists of two to eight pumps with variable speed provided by individual frequency converters built into the control cabinet. The entire system is managed by an S7 1200 controller from Siemens.
- This type of set is characterized by a wide range of applications - from 1.5kW to 55kW power.
- The controller ensures optimal pump operation thanks to innovative software from Gulf Modern, resulting from many years of experience in building pumping systems.

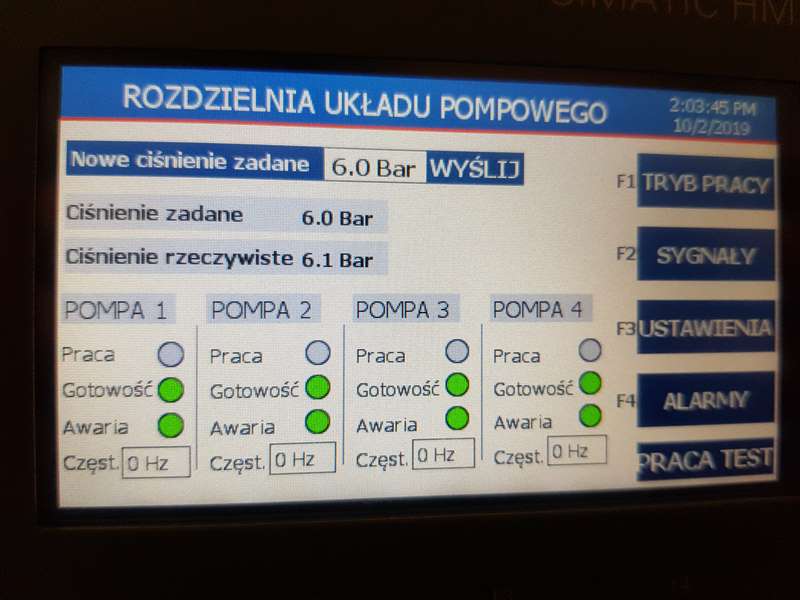

- An LCD screen is mounted on the front of the cabinet, from which the user can read and change the operating parameters of the set.
- Additionally, the controller is adapted to connect the set to the user's telemetry network, allowing remote reading and changing of pump parameters.
- Each set is typically equipped with check valves, shut-off valves, pressure gauges, fittings, diaphragm tank, piping system, and stainless steel base.
Features and Benefits:
- Energy efficiency due to the smooth regulation of each pump. Each pump starts and stops at variable speed, eliminating hydraulic and electrical shocks in installations.
- Economy achieved by using standard devices, resulting in low repair and maintenance costs.
- Reliability thanks to the use of components from leading manufacturers in both hydraulic parts and automation (AKPiA).
- Comprehensive solution achieved with proprietary controller software, allowing for the extension of functions to include additional control of drives, solenoid valves, and other elements of the facility.
Interested in this set – contact us!
